71 GREAT ROAD (STATE ROUTE 146), NORTH SMITHFIELD, PROVIDENCE COUNTY, RHODE ISLAND

Detailed line drawing of pedimented porch with dentil molding and full columns, Capt. Daniel Arnold House, Smithfield, Rhode Island.
EXTERIOR DOORWAY ELEVATION

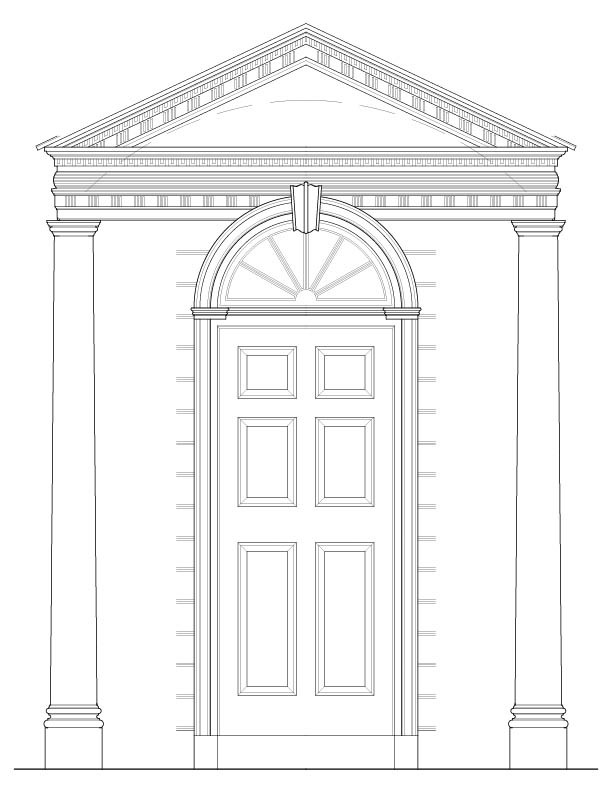

Line drawing elevation of arched doorway with fluted pilasters and semicircular fanlight, Capt. Daniel Arnold House, Smithfield, Rhode Island.
EXTERIOR DOORWAY ELEVATION

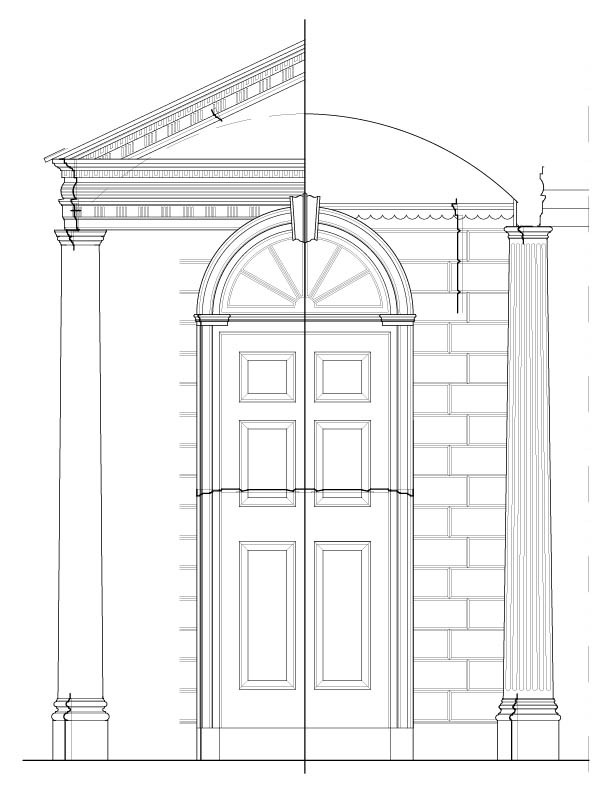

Composite elevation showing half pediment and half arched porch canopy with classical columns, Capt. Daniel Arnold House, Smithfield, Rhode Island.
EXTERIOR DOORWAY ELEVATION AND SECTION

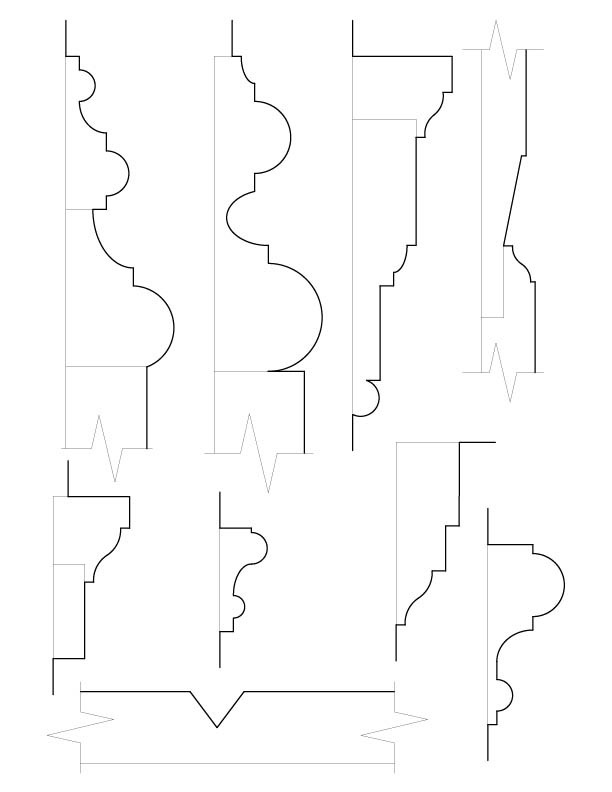

Profile line drawings of classical moldings and column base details from the Arnold House doorway, Smithfield, Rhode Island.
EXTERIOR DOORWAY MOULDINGS

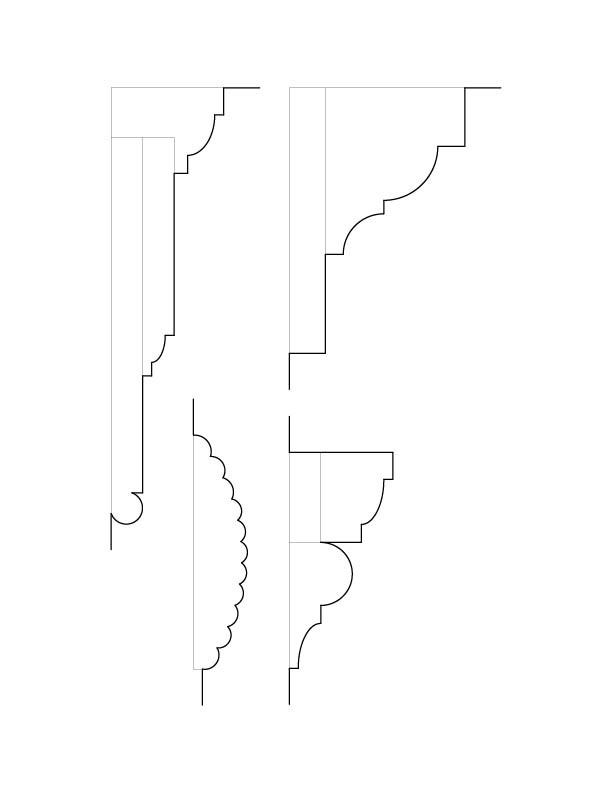

Additional molding and trim profile drawings including cornice and casing sections, Capt. Daniel Arnold House, Smithfield, Rhode Island.
EXTERIOR DOORWAY MOULDINGS
Measured architectural drawing of the doorway and porch detail, Capt. Daniel Arnold House (1714), Union Village, Smithfield, Rhode Island.

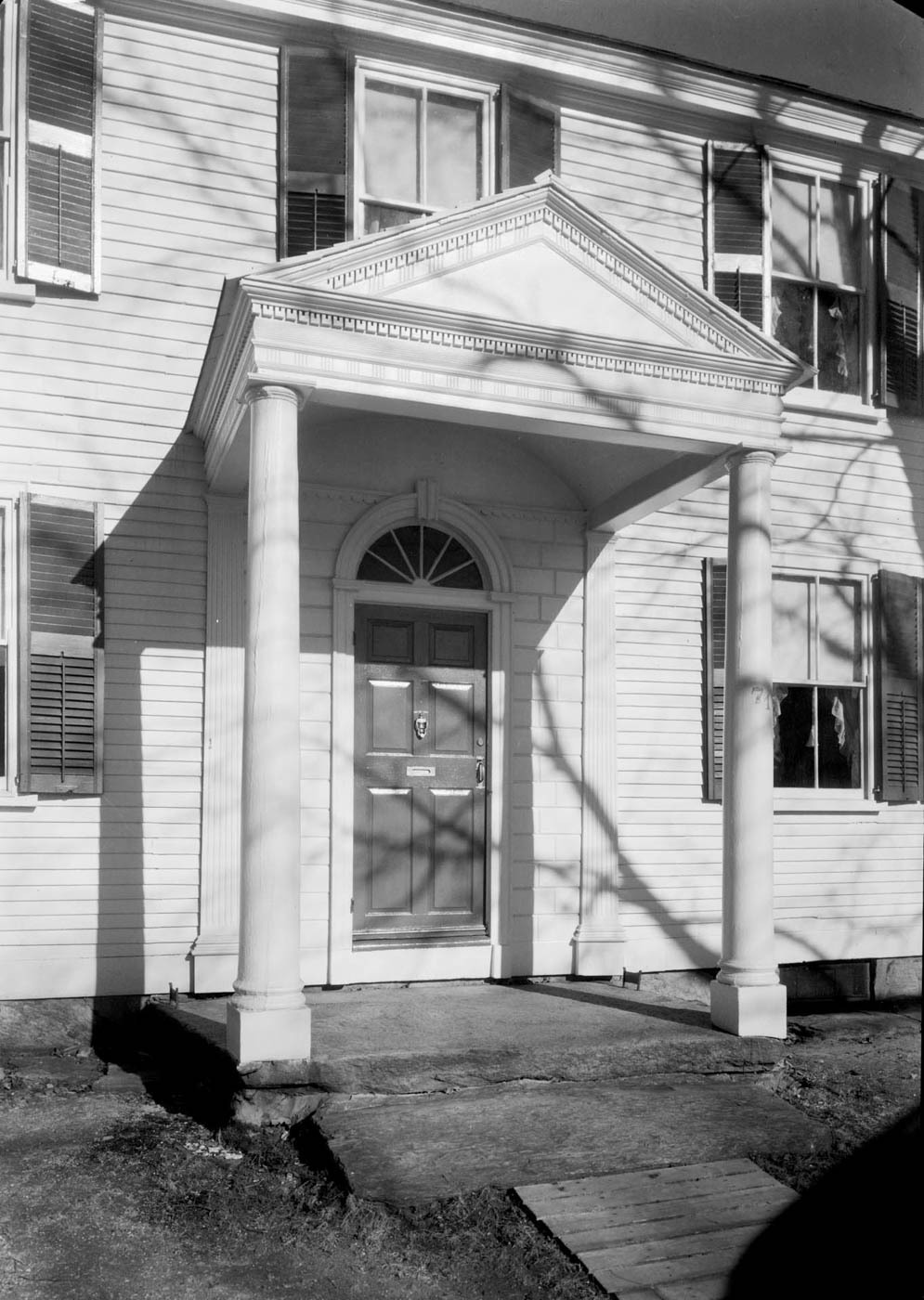

Historic exterior photograph of the pedimented porch with two round columns at the Capt. Daniel Arnold House, Union Village, Smithfield, Rhode Island.
Historic black and white photograph of the porch and doorway, Capt. Daniel Arnold House, Union Village, Smithfield, Rhode Island.

!
